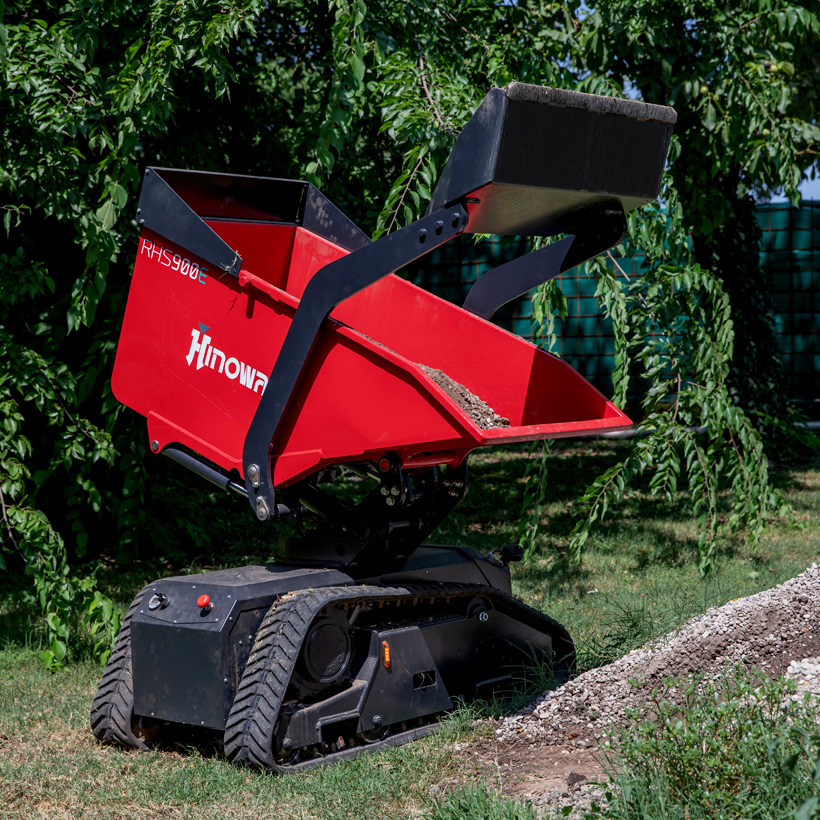

Minidumper RHS900E
The radio-controlled minidumper for better workplace safety
Hinowa's RHS900E minidumper is a state-of-the-art, radio-controlled tracked machine designed to redefine efficiency for transport work in difficult terrain. With its all-electric drive, remote control and no local CO₂ emissions, it is a modern, powerful and environmentally friendly solution for tackling even the most demanding operational challenges. The result of Hinowa's experience and careful engineering research, the RHS900E minidumper combines manoeuvrability, safety and high loading capacity in a compact and innovative machine body.
Why choose the RHS900E radio-controlled minidumper
The RHS900E is the result of a technological evolution that puts the operator and the environment at the centre:

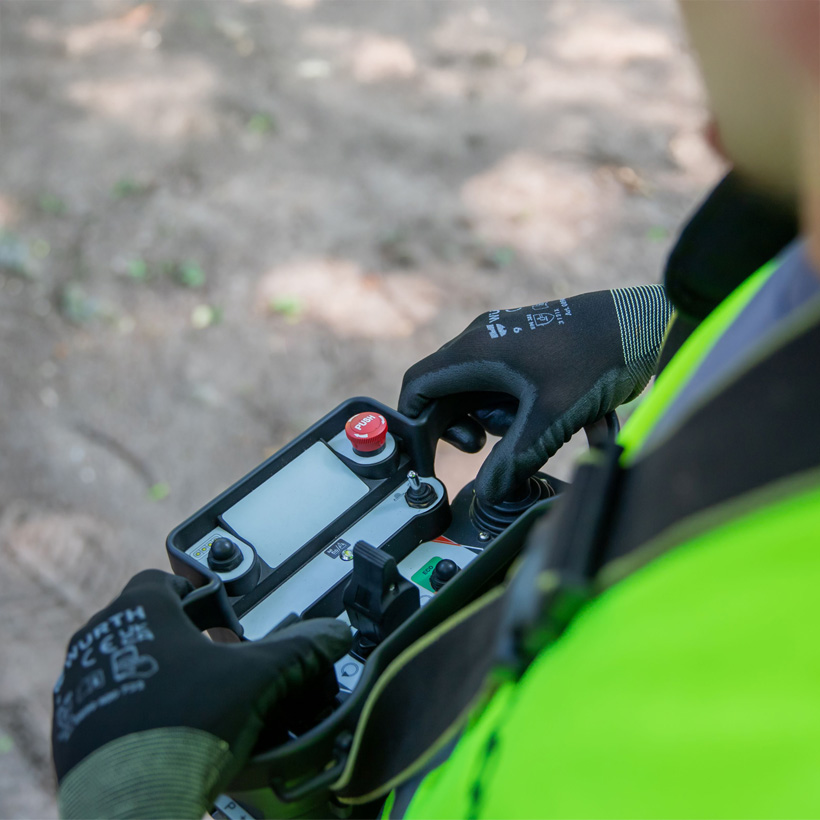

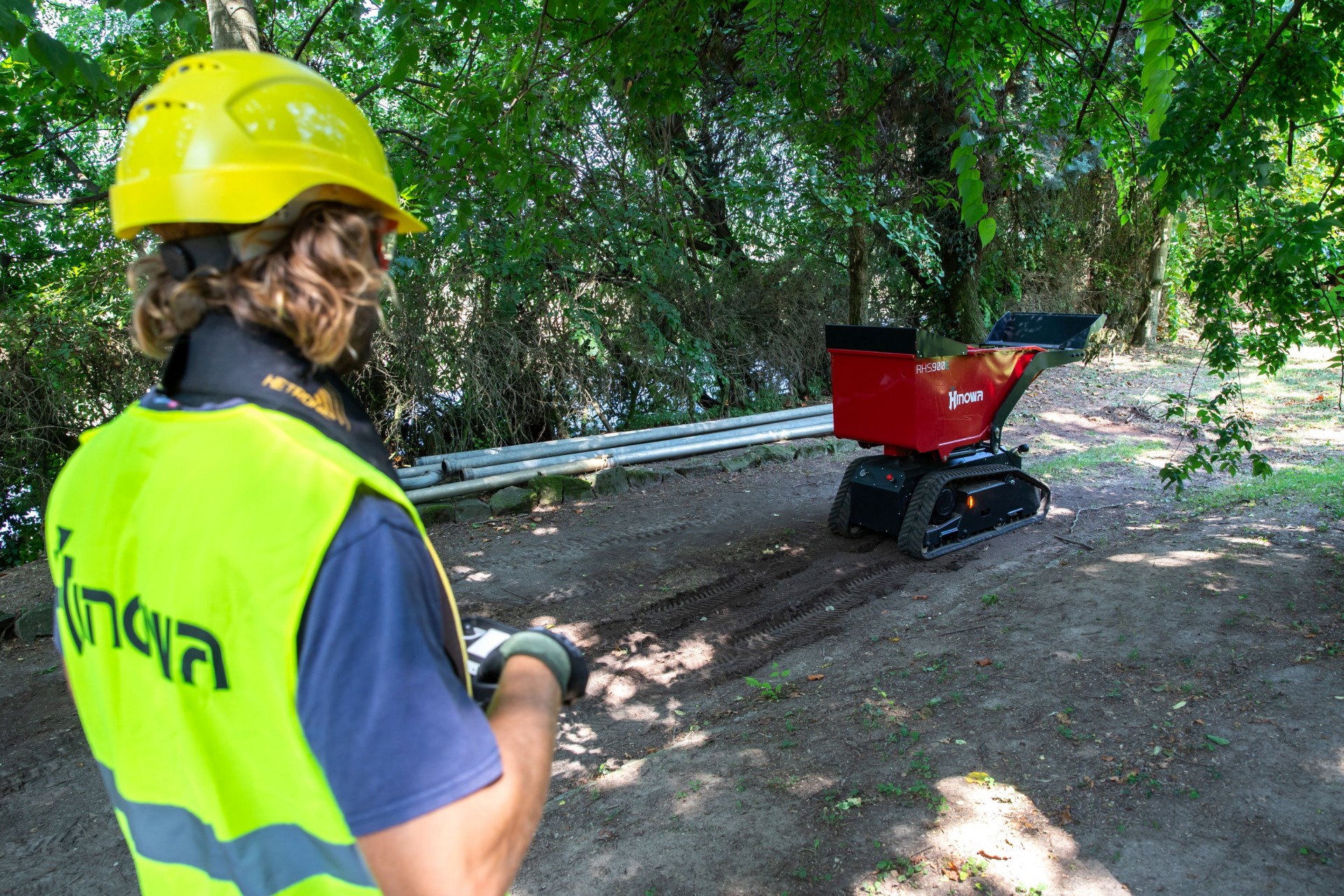

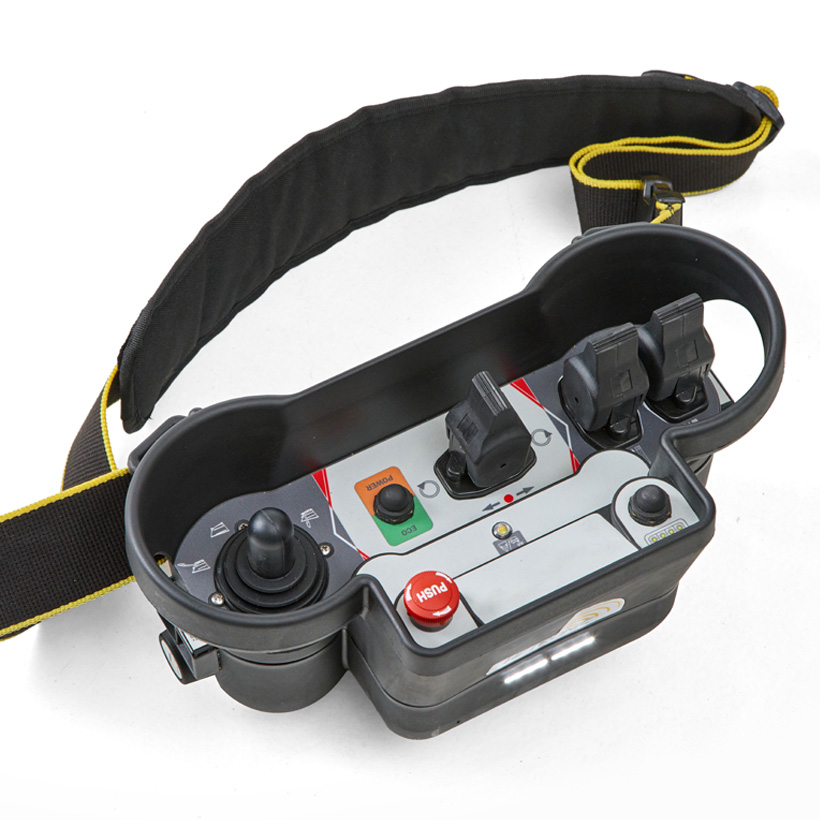

- Radio-controlled driving: the ability to operate the machine remotely, without an operator on board, provides direct visibility of operation and precise control of the load. The operator is shielded from vibrations, noise and the hazards of uneven terrain.

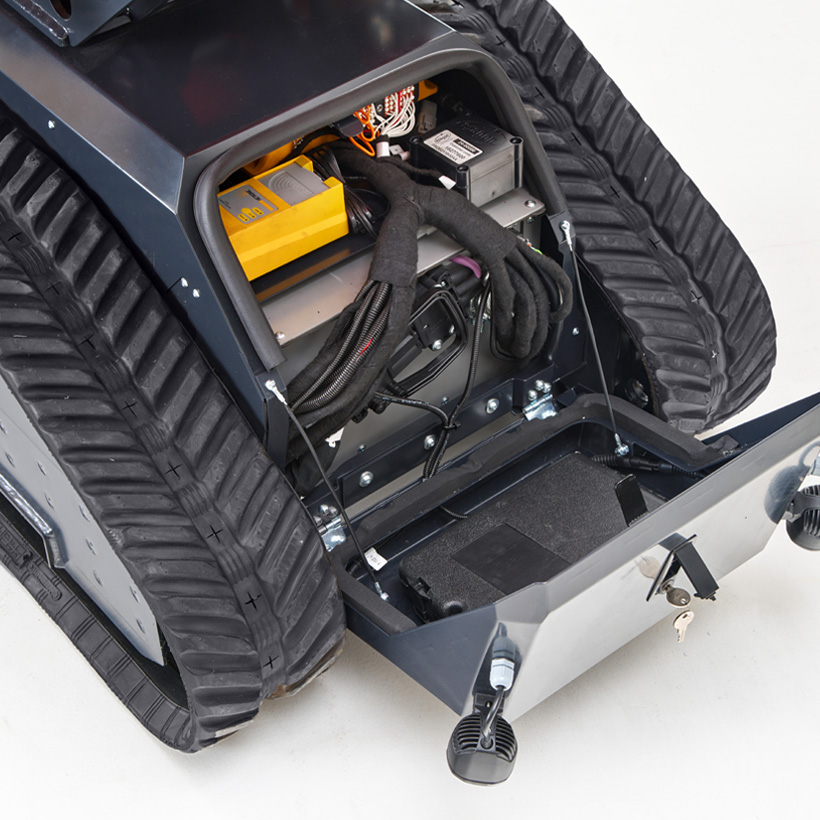

- Energy efficiency and autonomy: the 48V - 120Ah lithium-ion battery pack provides ample operating autonomy and fast recharging. Electric motors are designed to provide high efficiency with optimised consumption.
- Compact size, increased capacity: the structure is 20 per cent shorter than the average 700 kg minidumper, but allows up to 30 per cent more material to be transported, totalling 910 kg.
- Extreme manoeuvrability: thanks to remote guidance and tracks, it designed to negotiates tight bends, slopes and uneven surfaces, supporting constant stability and optimum performance.

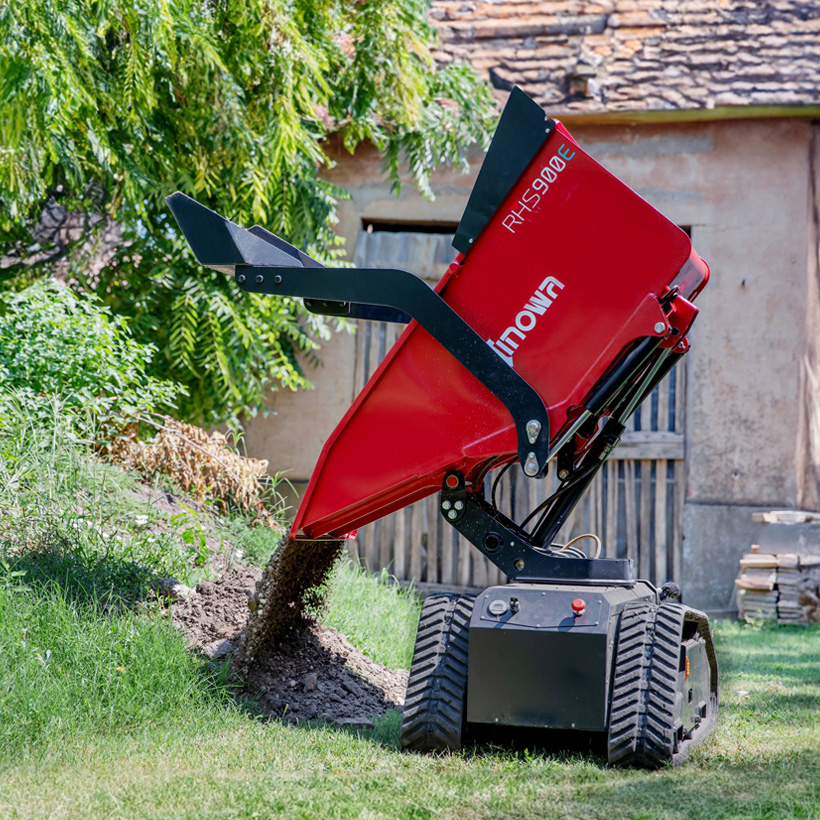

- Unloading on all sides: the presence of the slewing ring allows material to be unloaded in any direction, without the need for additional space for the operator station.
When to use it?
The RHS900E is the ideal choice for a wide range of applications, especially in contexts where it is essential to reduce emissions, contain the operational footprint and promote safe use:
- Construction work in historic city centres or indoor spaces
- Urban construction sites and emission-sensitive environments
- Landscaping and green maintenance
- Tunnel work and excavations in confined spaces
- Operations in industry and logistics
For which professionals is the RHS900E radio-controlled electric minidumper suitable?
Thanks to its versatility, advanced technology and ease of use, the RHS900E radio-controlled minidumper is perfect for:
- Construction and renovation companies
- Landscapers, gardeners and nurserymen
- Operators of underground or residential construction sites
- Farmers and land maintenance companies
- Hirers of construction machinery
- Public bodies and municipalities
- Logistics and inland transport professionals
All in all, Hinowa's RHS900E is the ideal choice for those looking for a powerful, safe and zero-emission radio-controlled minidumper capable of tackling even the most demanding operating conditions with efficiency and versatility.
| Lithium-ion battery | 48V, 120Ah |
| Battery charge | 3 KW 80-240V |
| Recharging time | 3 hours (100%) |
| Number of drive motors | 2 |
| Type | Dana Spicer ES10H |
| Type distributor | hydraulic |
| Track tensioner | grease |
| Track width | 180 mm |
| Fixed undercarriage | 78 cm |
| Translation speed | 2,3 - 4 km/h |
| Max. inclination | 20° (36,4%) |
| Capacity | 910 kg |
| Dumper bed capacity: rated volume (ISO 6483) | 0,46 m3 |
| Dumper bed capacity: struck volume | 0,39 m3 |
| Operating weight self-loading version | 740 kg |
-
- Features:
-
- Radio-controlled driving: remote operation for enhanced safety and visibility.
- Electric drive: fully electric transmission with zero local CO₂ emissions.
- Battery: 48V – 120Ah lithium-ion battery pack, offering extended autonomy and fast charging.
- Electric gear motors: ensure high efficiency and low energy consumption.
- Compact design: 20% shorter than standard 700 kg minidumpers, yet with 30% increased capacity (up to 910 kg).
- Extreme maneuverability: tracked system suitable for tight turns, slopes, and uneven terrain.
- Unloading on all sides: rotating turret allows dumping in any direction.
- No onboard operator: eliminates exposure to vibrations, noise, and rough terrain hazards.
- Improved load control: thanks to the operator's full view of the working area.
- Zero local CO₂ emissions: ideal for sensitive and enclosed environments.
- Optimized consumption: due to the efficiency of electric components.
-
